Audio Entry with Fingerprint Module

This project involved 4 key elements; our client required an audio door entry system using biometric reader and a very secure multipoint lock which was to be controlled by the biometric reader. CCTV was also a requirement covering 3 external views.

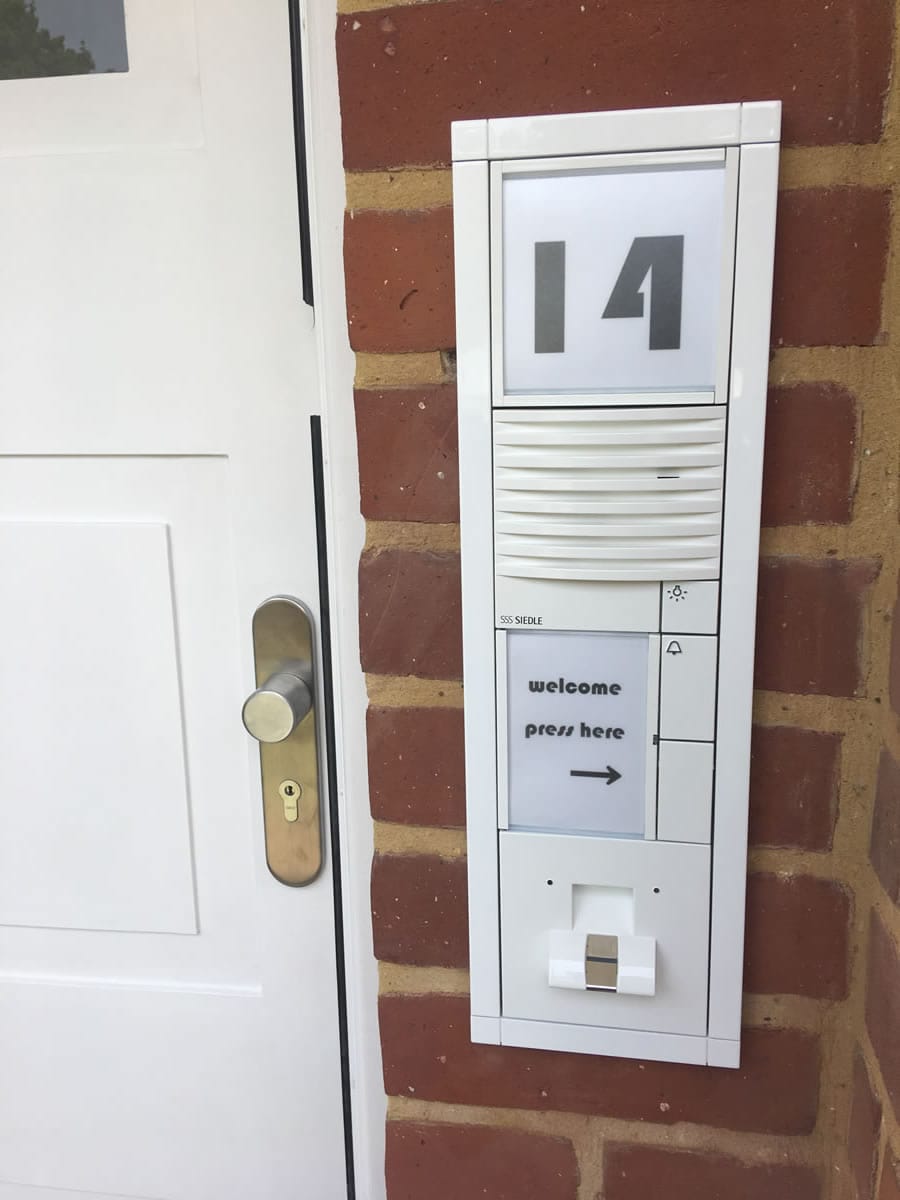

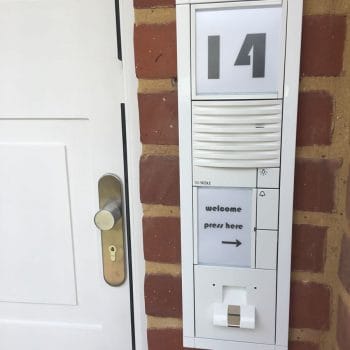

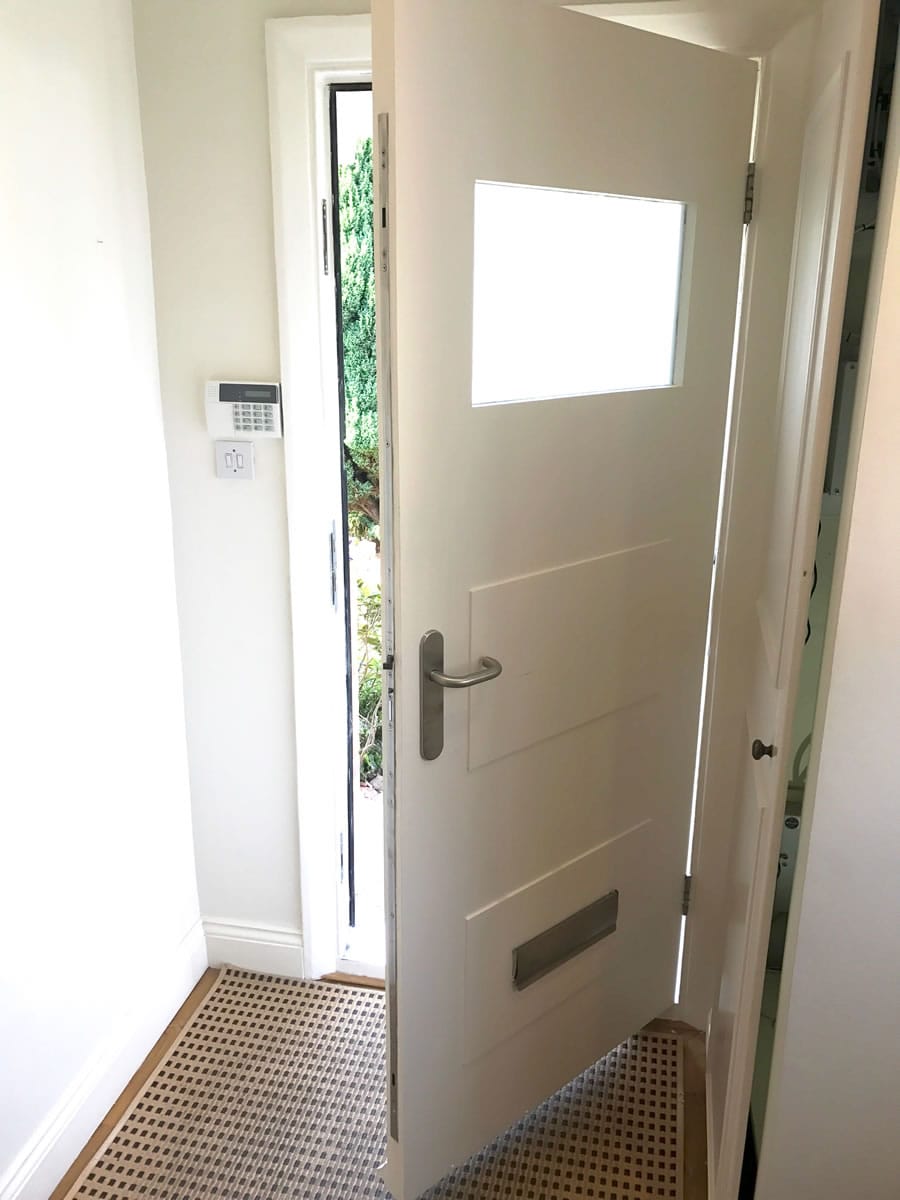

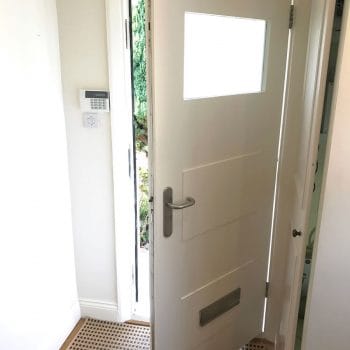

Our proposal was the Siedle Vario panel with fingerprint module finished in a High Gloss White to match the clients newly installed windows. The locking solution was to install an Abloy MP532 motor lock offering 4 points of locking, this is motorised to open when a valid fingerprint is accepted from the Siedle Fingerprint module. Lock cable is routed through the centre of the door via a single 8mm hole and transferred from door to the frame using the Abloy EA280 concealed door loop. After successfully installing the new locking for the client we made good where the old locks had been removed, this involved splicing timber into the existing holes within the door and frame and finished ready for painting.

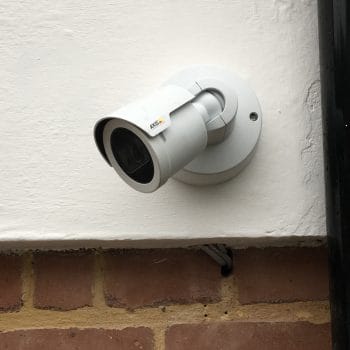

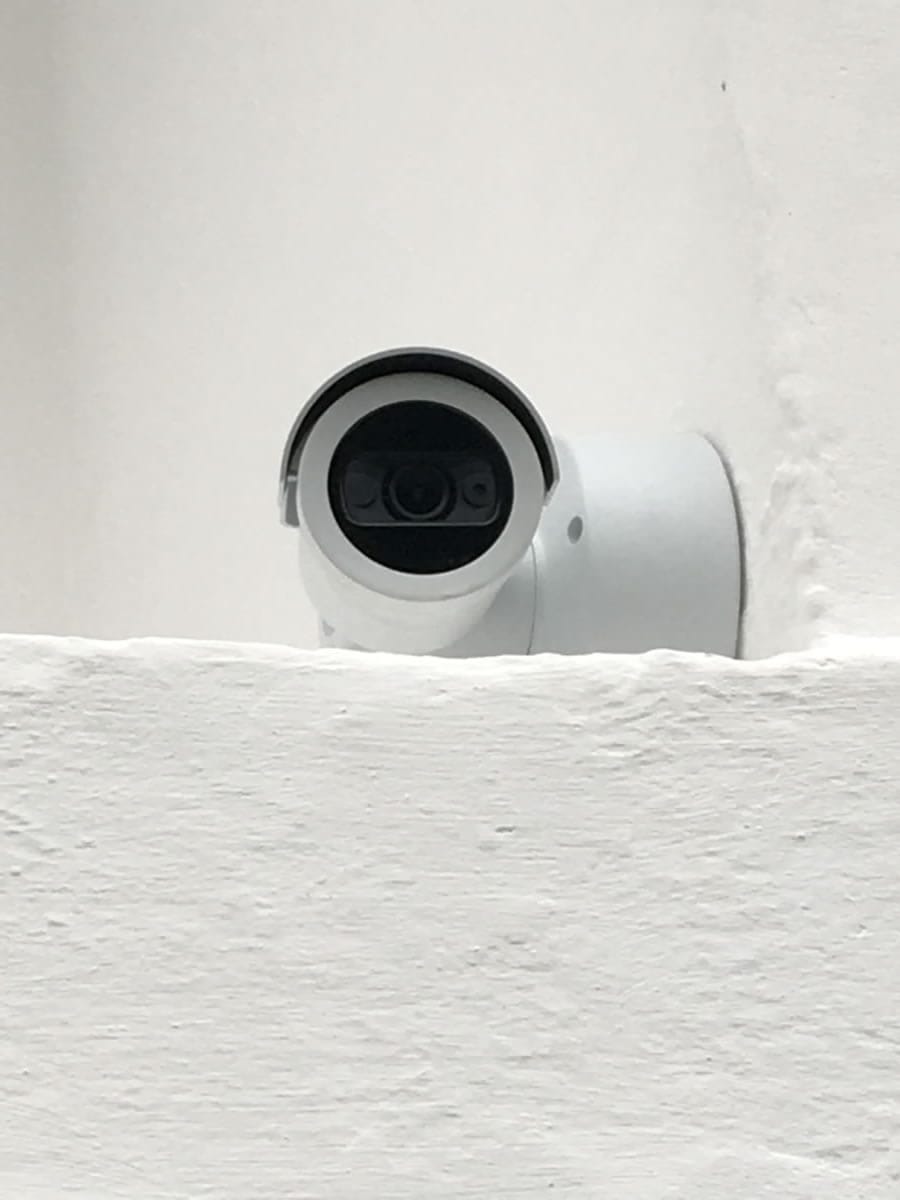

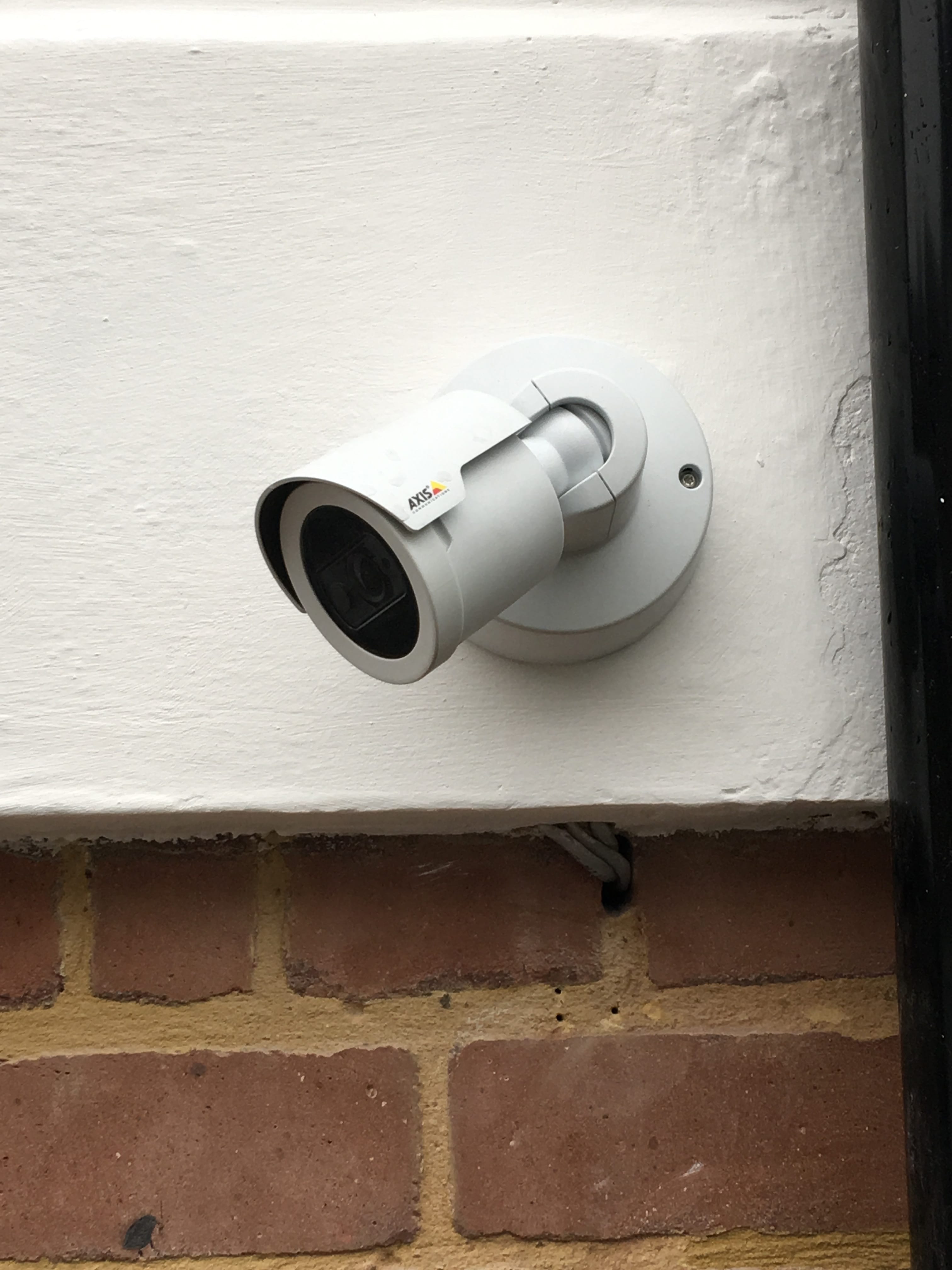

For the CCTV solution we installed 3 Axis Companion Bullet LE IP cameras that were all configured to the clients smart phones via Axis secure server.

Our client was very pleased that all elements were satisfied with an installation that was carried out to a very high standard using quality products.
